Inclined Ejector Slide calculation begins with accurate measurement of the undercut depth that must be cleared during the ejection phase. The required lateral travel equals that depth plus a safety allowance of three to five millimeters. This extra distance compensates for thermal expansion minor misalignment and residual shrinkage that can otherwise leave the insert partially engaged.

Once the lateral distance is known the designer selects a tilt angle that converts the available vertical plate stroke into the needed horizontal movement. The basic relation is tan of the angle equals lateral travel divided by vertical stroke. Common working angles fall between three and twelve degrees. Shallower values reduce lateral force on the guiding surfaces yet demand longer plate travel. Steeper values shorten the required stroke but raise friction and bending stress on the driving element.

Vertical stroke itself must exceed the molded part height so that the finished item lifts clear of the cavity before the angled path ends. At the same time residual engagement of the moving member inside its guide must remain at least two thirds of its length at full extension. Shorter remaining contact risks tipping and accelerated wear. Checking this residual length after the calculated stroke confirms mechanical stability.

Material hardness and surface finish influence how much force the mechanism can transmit without scoring. A through hardened alloy with a controlled surface roughness keeps friction low across thousands of cycles. Lubrication grooves or dry film coatings further reduce the energy needed to complete each stroke.

Interference checks form the next verification step. The path of the moving member must clear nearby pins cooling channels and cavity walls throughout its combined motion. Three dimensional simulation of the full travel path reveals any collisions before steel is cut. Adjusting the starting position or adding a small offset often resolves tight spots without changing the basic angle.

Force balance also requires attention. Injection pressure acting on the forming face tries to push the member backward. A positive locking surface or heel block counters that pressure during filling. The locking angle is set a few degrees steeper than the working angle so that the lock releases cleanly once the mold opens.

After the numbers are set a physical trial with a prototype insert confirms that the part releases without marks or deformation. Measuring the actual lateral clearance achieved and comparing it with the calculated value validates the trigonometry. Small adjustments to the angle or stroke can then be made before final hardening.

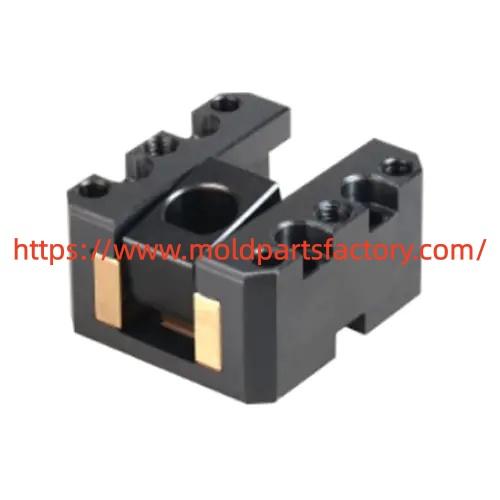

Moldpartsfactory supplies precision angled members and matching guide blocks manufactured to consistent hardness and dimensional tolerance so that the calculated path remains repeatable from cavity to cavity. The company provides material certificates and surface data that support reliable force transmission under production loads.

Routine measurement of residual travel after a set number of cycles detects gradual wear before it affects part quality. Keeping the guiding surfaces clean and reapplying lubricant at scheduled intervals maintains the original friction coefficient.

By combining accurate undercut measurement trigonometric conversion residual engagement checks and interference verification designers arrive at angle and stroke values that keep the release action smooth and predictable. The result is fewer interruptions and more uniform part quality across extended runs.
