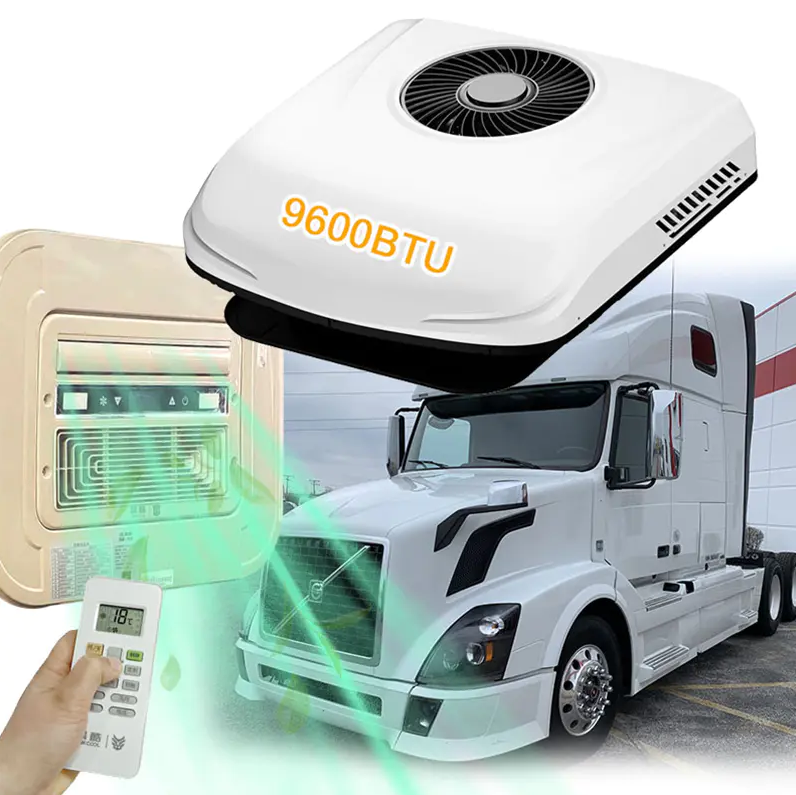

Installation of a cabin cooling system on commercial trucks requires both electrical understanding and structural awareness. The Rooftop Parking Truck Tractor Air Conditioner is designed as a self-contained unit, but correct installation determines cooling efficiency, vibration stability, and long-term durability.

Most installations begin with roof assessment. Truck cabins typically support static rooftop loads between 50–80 kg depending on model structure. A rooftop air conditioner unit generally weighs 28–45 kg, leaving sufficient safety margin. Before mounting, technicians measure roof curvature and locate reinforcement ribs to ensure stable fixation.

A standard installation opening usually ranges from 350×350 mm to 400×400 mm. This opening replaces an existing roof vent or is cut into a reinforced section if no vent exists. Proper sealing is critical because improper insulation can reduce cooling efficiency by up to 20% due to air leakage.

Electrical integration is another key step. Most systems operate on DC 12V or 24V. A 24V system typically draws 20A–40A during steady operation, while startup current may temporarily reach 50A–60A depending on compressor load. Cables must be sized accordingly, often 6–10 mm² copper wiring for stable transmission and minimal voltage drop.

Mounting involves placing a rubber gasket between the unit base and cabin roof to reduce vibration transfer. Bolts are tightened in a cross pattern to distribute pressure evenly. Anti-vibration brackets are often added for long-distance freight trucks to prevent micro-movement during road shocks.

After physical installation, refrigerant circuit testing is performed. Factory-sealed systems reduce field charging requirements, but pressure validation ensures no leakage during transport or installation. Airflow direction is then calibrated inside the cabin, with vents adjusted to optimize cold air distribution toward sleeper zones.

A properly installed rooftop unit can achieve cooling efficiency between 2200W and 3500W depending on compressor type. Internal cabin temperature reduction from 45°C to 25°C can typically be achieved within 15–25 minutes under moderate conditions.

Safety systems are also tested during installation. These include low-voltage protection (often cutting off at 11.5V for 12V systems or 21V for 24V systems), overload protection, and compressor thermal shutdown.

Correct installation ensures that the Rooftop Parking Truck Tractor Air Conditioner operates with low noise, typically around 50–55 dB(A), which is suitable for overnight rest environments.
